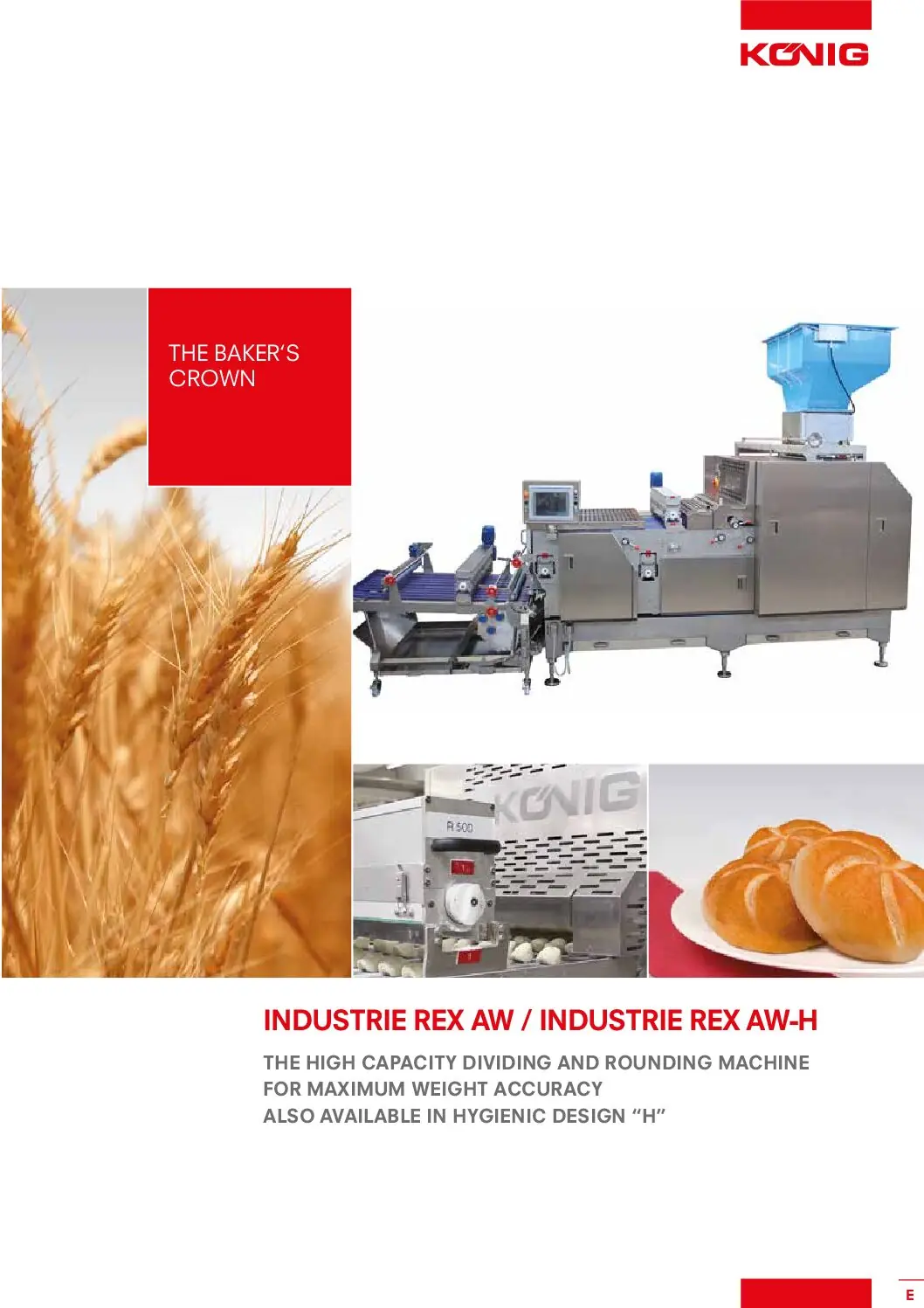

Koenig Industry Rex AW
- Produces up to 30,000 pieces/hour (22–160g) with 6-, 8-, or 10-row operation and precise Multi-system weight control.
- Ensures gentle, consistent rounding with enlarged drum, adjustable eccentric, and “stop and go” dividing.
- Built for hygiene and efficiency with fold-up belts, sealed drives, 300mm ground clearance, and easy-access doors.
Overview
- 6-, 8- or 10-row dough dividing and rounding machine in the weight range of 22-160 g
- dividing and rounding system developed from scratch
- continually adjustable, even slide pressure for greatest weight accuracy for different doughs
- max. hourly capacity: approx. 30,000 pieces with 50 strokes/min in the 10-row version
- change of the weight range through manually exchangeable dividing ledges and piston tools according to the Multi system
- exact dividing process through “stop and go” operation and specially shaped pre-chamber
- inner rounding drum with automatically adjustable rounding eccentric
- transfer belts between dividing drum and rounding drum can be folded up on both sides for easy cleaning
- drive of the transfer belts through cardan joint drive drums for maximum protection of the belt
- enlarged rounding drum for longer and thus more intense rounding of all doughs
- discharge spreading finger belt with cardan joint drive to avoid belt slippage
- main drives are encapsulated and completely separated from the dough area
- easy maintenance through large, removable maintenance doors
- ground clearance of 300 mm throughout for easy cleaning under the machine
- generous integrated shelves for machine accessories
