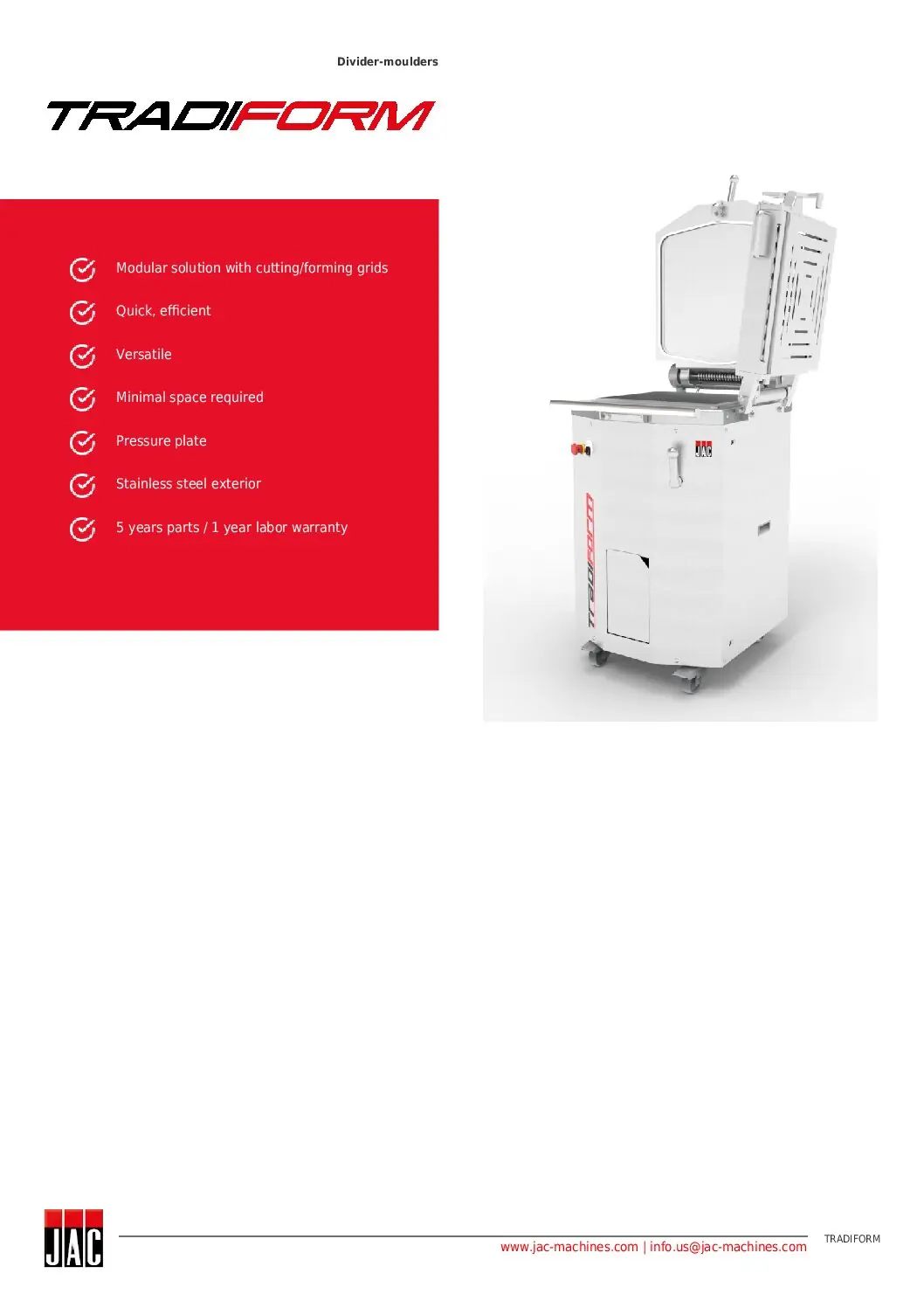

Jac Tradiform Hydraulic Divider w/ Grid System
Hydraulic divider with grid system
- Combines in-tank and grid dividing, handling up to 19kg in-tank or 5kg with over 100 grid options.
- Durable and hygienic with EASY CLEAN floats, stainless-steel knives, and flour recovery system.
- Features pressure control, Start/Stop, Click&Cut, and optional Fullmatic automation.
Overview
Tradiform is perfect combination of an in-tank divider and grid divider. Perfectly suited to all types of dough, it will enable you to divide up to 19 kg in tank or 5 kg via a grid. It is equipped with a pressure plate and a grid holder to benefit from the very wide range of over 100 grids, from which you are bound to find THE right mould for your product. JAC has made ambitious technical choices: reinforced piston, cast aluminium floats with EASY CLEAN treatment, Click&Cut, Start and Stop system, sharpened stainless-steel knives, square stainless-steel tank, flour recovery system, pressure setting facility. These advantages make it a benchmark machine on the bakery market. It can also be equipped optionally with the Easyflour flour dispenser and the automatic Fullmatic system.

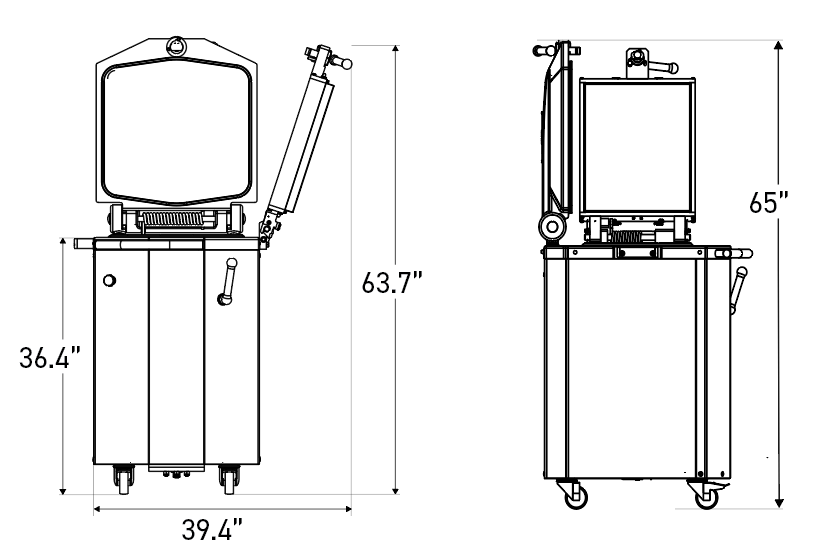

| Dimensions of tanks (L x W x H) in in | 18.1” x 15.2” x 4.9” |
| Dimensions of heads (L x W) in in | 4.5” x 2.9” |
| Min/max weight of dough pieces in oz | 5.3 / 33.5 |
| Tank capacity in lbs | 41.9 |
| Pressure plate | • |
| Automatic knife retraction | • |
| Flour splash prevention system | • |
| Supplied with a grid frame | • |
| Motor power in kW | 1.8 |
| Type of motor | 3ph/208V/60Hz/11A |
| Net weight in lbs (including frame) | 628.3 |
